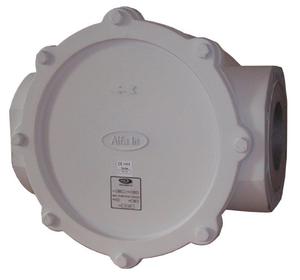

Gas Filter FO 100F DN100 PN6 insertion 5µm

Product description Gas Filter FO 100F DN100 PN6 insertion 5µm

ALFA IN FO and FT filters are designed for removing impurities from fluid medium in pipelines. In compliance with standard EN 437:2004, they are suitable for distribution of heating gases, air and other non-aggressive gases, where lower content of impurities is required. That is why they are inserted before gas-meters, valve batteries, burners, etc. The filters can be used according to a model up to maximum working pressure of 0.4; 0.6; 1.6 MPa and working temperature from -20 °C to +80 °C. Maximum speed of medium at the inlet nozzle is 20 m/s-1.
The filters consist of a body, a cover and a resilient filtration cartridge. The body and the cover is die-cast and machined from AlSi10Mg. ALFA IN Gas Filters are as standard equipped with Filter Inlet s 5 µm which is able to capture the impurities bigger than 5 µm (0,005 mm). The filter can be also equipped with Filter Inlet 20 µm which is able to capture impurities bigger than 20 µm on request. Filter Inlet 20 µm has a lower pressure loss that the standard Filter Inlet 5 µm.
For filters size DN 100, DN 150 and DN 200 is a Filter Inlet 100 µm made of stainless steel as a third option. Stainless steel inlets is suitable for biogas or gas with a higher moisture content.

The Gas Filter FO 100F DN100 PN6 insertion 5µmrecommended accessories

O-Ring300x5mm, mat. POWERseal NBR 70 Sh, DVGW EN 549 2025 Your price: 5,13 EUR without VAT (6,21 EUR including VAT) Normal price: 5,13 EUR without VAT (6,21 including VAT) O-Ring300x5mm, mat. POWERseal NBR 70 Sh, DVGW EN 549 Add to cart: Pcs

Filter Inlet FO100F 5µm 6030001 Your price: 31,32 EUR without VAT (37,90 EUR including VAT) Normal price: 31,32 EUR without VAT (37,90 including VAT) Filter Inlet FO100F 5µm Add to cart: Pcs
